Wet rooms

file — Duo: Two way fall linear design, perfect for large tiles

Concrete floor build-up

Our range of linear drains has been developed specifically for concrete or screeded floors and can be used on concrete slabs, planks and block and beam floors. The key feature of the Linear Floor Drain is its height - the total height from the base to the top of the trough being only 67mm, making it perfect for today’s modern construction methods. The drain incorporates a unique "Nano waterless trap" which has a lifetime guarantee and has been granted BBA approval.

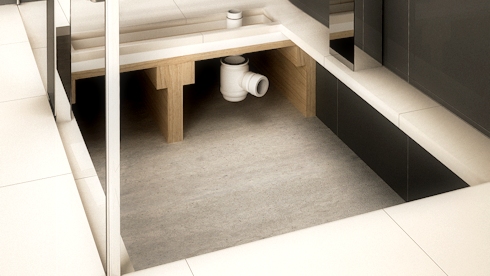

Typical timber floor build-up

Typical solid floor build-up

Waterproofing Products

The importance of waterproofing

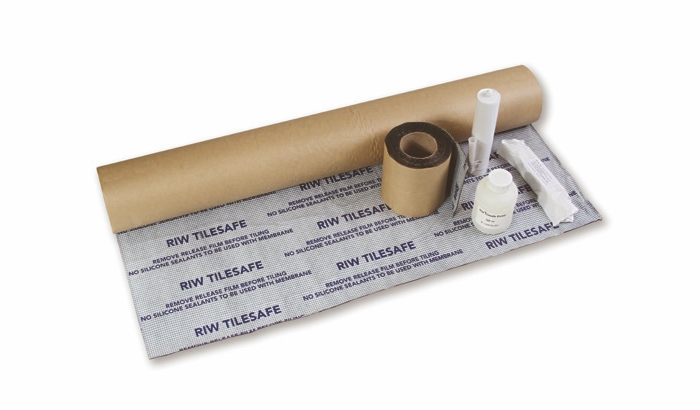

The primary concern for anyone choosing to create a wetroom is whether the floor or walls will either absorb, or worse let water through. Through our painstaking research and development we have created a system that is guaranteed, not just for a few years, but for life. The components of this system are Tilesafe for timber floors, Screedsafe for concrete floors and Wallsafe for all wall types. Tile and Screedsafe is a self-adhesive waterproof membrane designed for use prior to the application of ceramic, porcelain, and natural stone tiles onto timber, concrete and screeded floors in wetrooms and other critical areas. The kits comprises a self-adhesive cold applied waterproof membrane which consists of a rubberised waterproof layer incorporating a woven fabric on one face and Tilesafe cover on the other which you remove prior to tiling.
It is quick and easy to apply, resulting in a consistent waterproof layer that is guaranteed not to leak. Wallsafe liquid is a flexible coating for waterproofing wall surfaces prior to the application of ceramic, porcelain and natural stone tiles in wetrooms and other critical areas.

Wet rooms

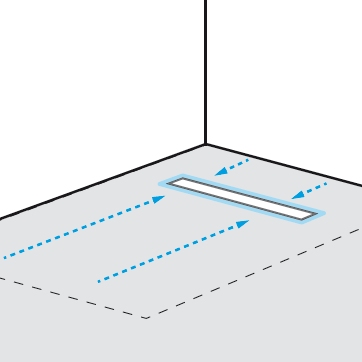

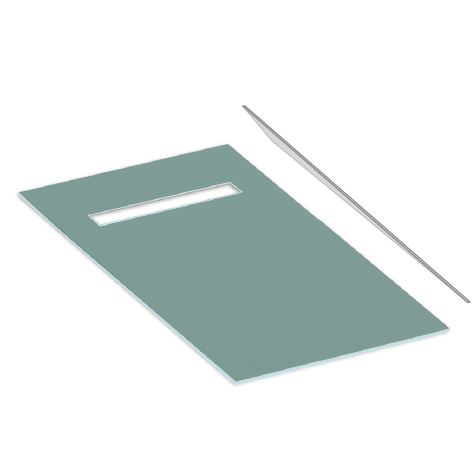

Duo: Two way fall linear design, perfect for large tiles

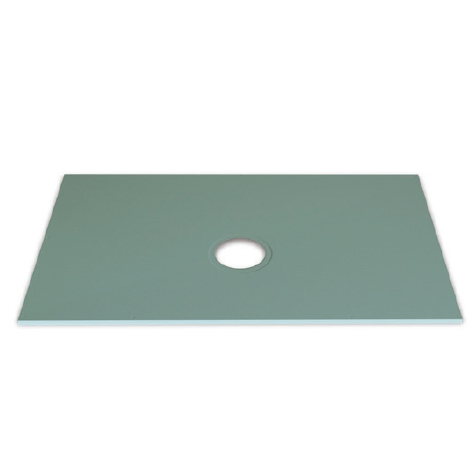

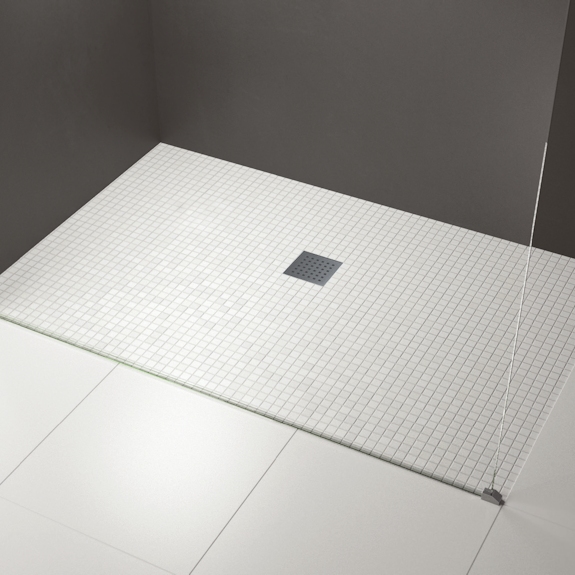

Quattro: Four way fall deck and drain and trap, perfect for small tiles

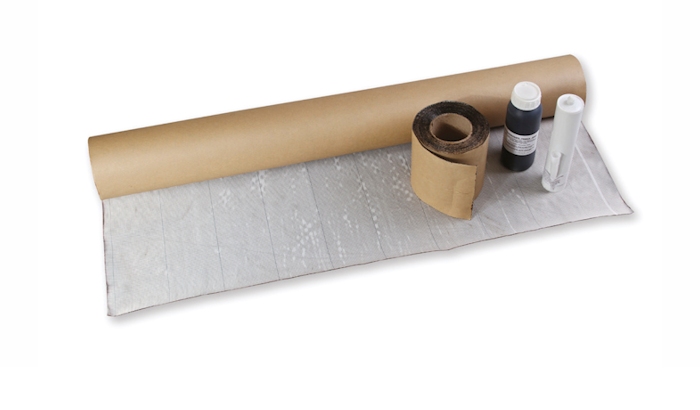

RIW®: Tilesafe and Screedsafe Waterproofing kits

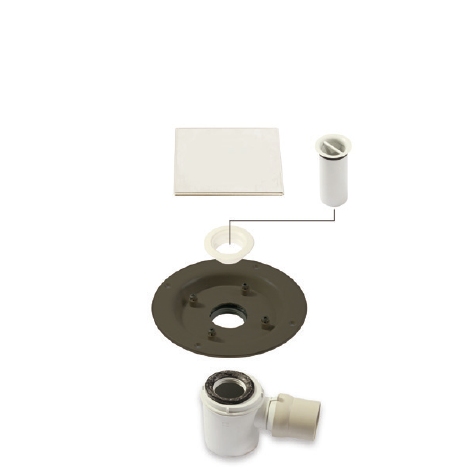

Height adjustable, 360° swivel trap and Nano® Waterless trap

Wet Rooms: effective and invisible

Details on Gradient and Drainage

Concrete floor build-up

Typical timber floor build-up

DUO DECK

QUATTRO DECK

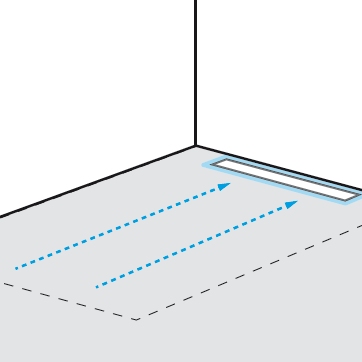

Gradient

DUODRAin

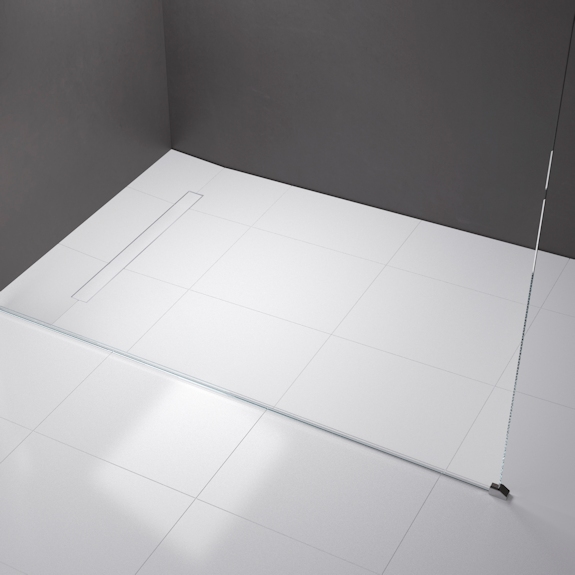

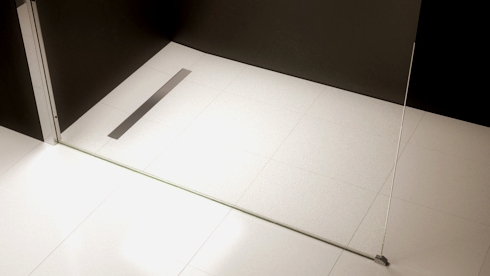

Finished DRAin

QUATTRO DRAin

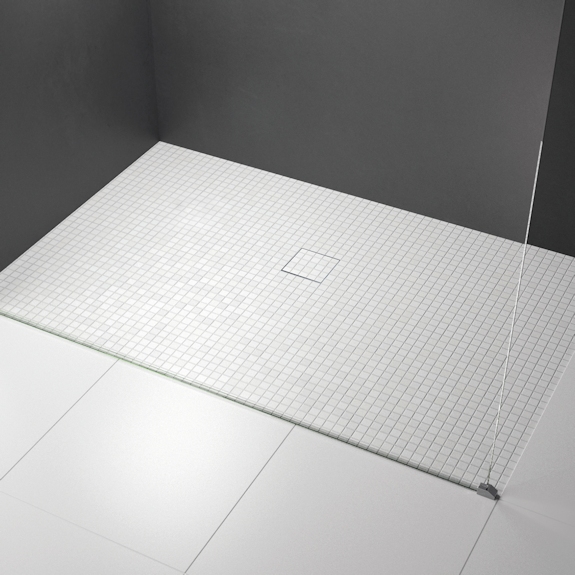

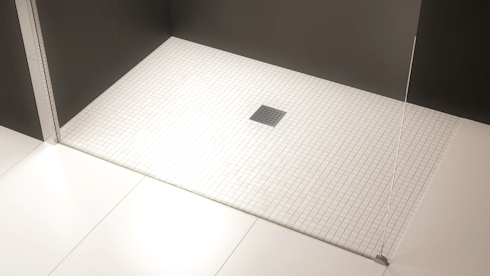

Finished DRAin

Drainage

Drainage finished

Typical solid floor build-up

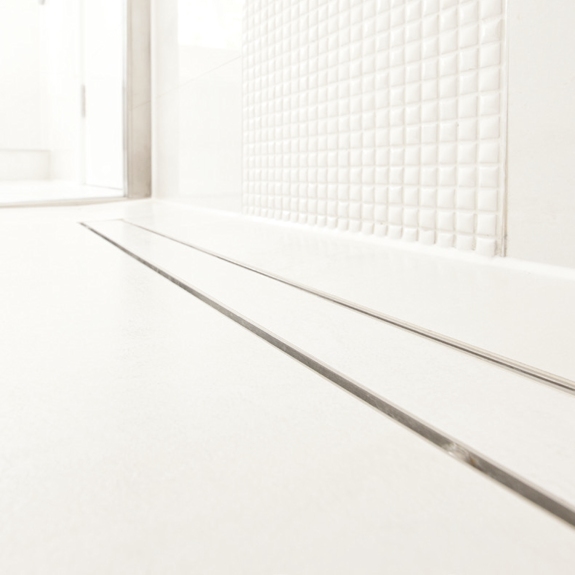

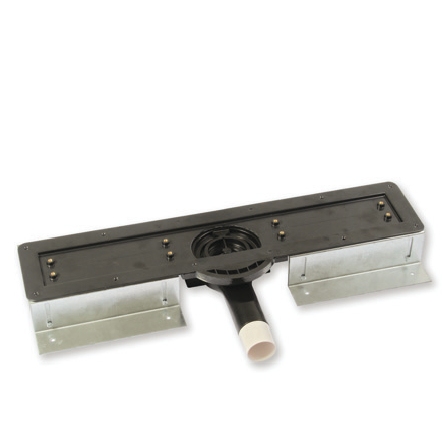

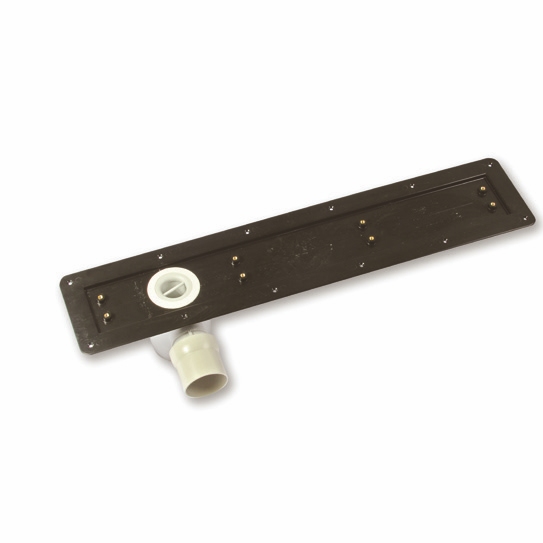

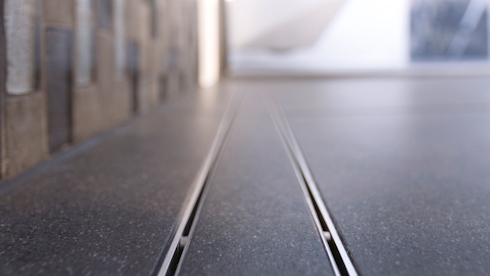

Linear Floor Drain

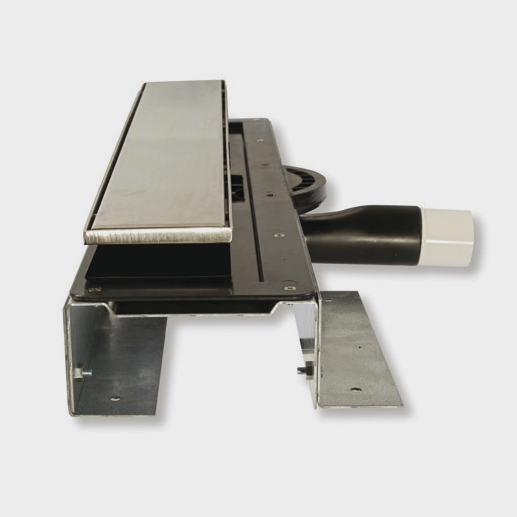

Linear Wall Drain

Gradient

Drain - single outlet

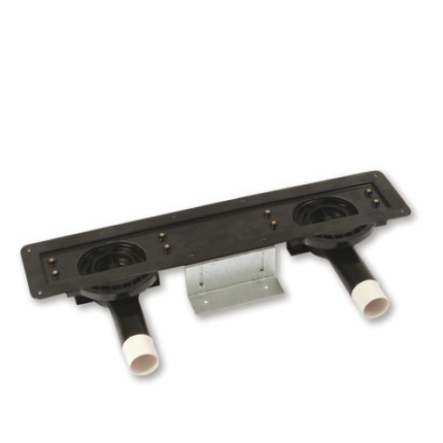

Drain - double outlet

Drainage

Waterproofing Products

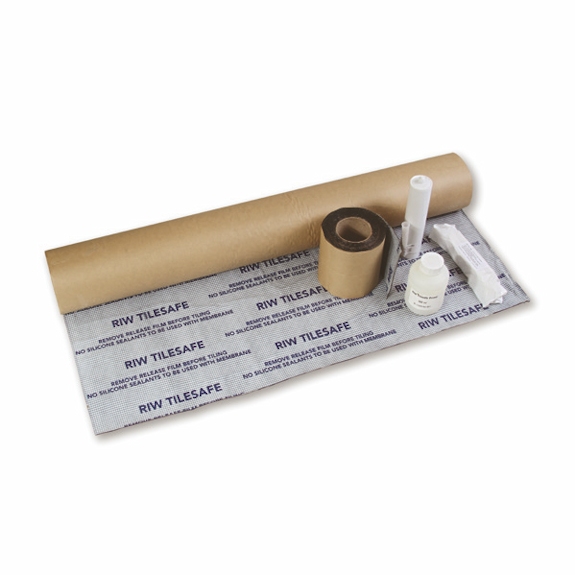

Tilesafe

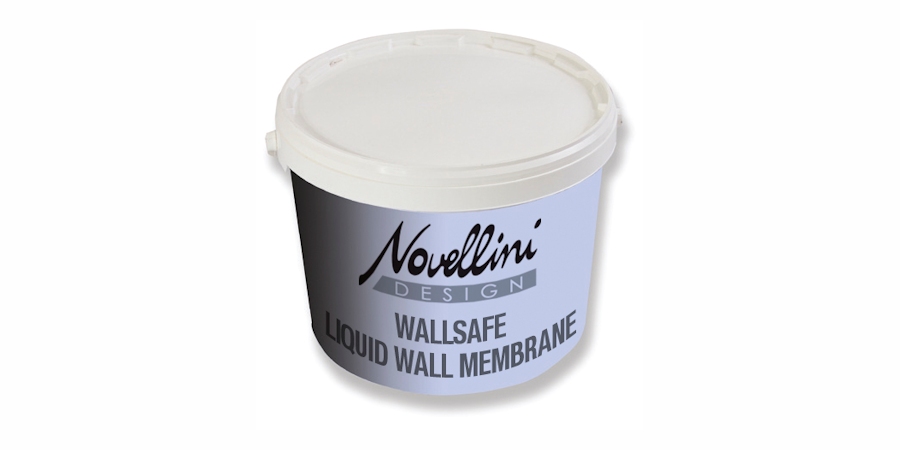

Wallsafe

Screedsafe

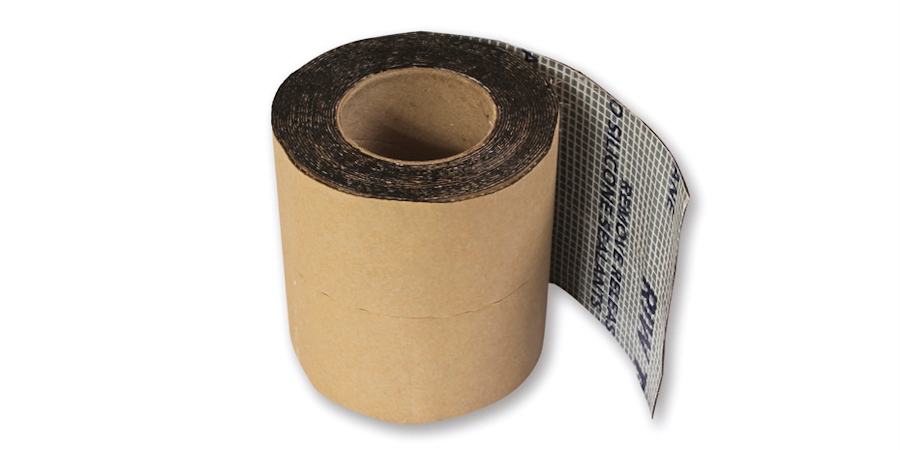

wallsafe Reinforcing tape

The importance of waterproofing

Application

Timber Floor Installation

Concrete Floor Installation
